1 Set ESP32 LoRa V4 Development Board Upgraded ESP32-S3 16MB Flash 28dBm High Power SX1262 LoRa Module WiFi Bluetooth 915MHz Antenna Support GPS Solar for Arduino Meshtastic LoRaWAN IoT
4.6 (132 items)
Limited Time SaleUS$17.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217004276 | Release Date | 2026/04/19 | List Price | US$12.00 | Model Number | 217004276 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

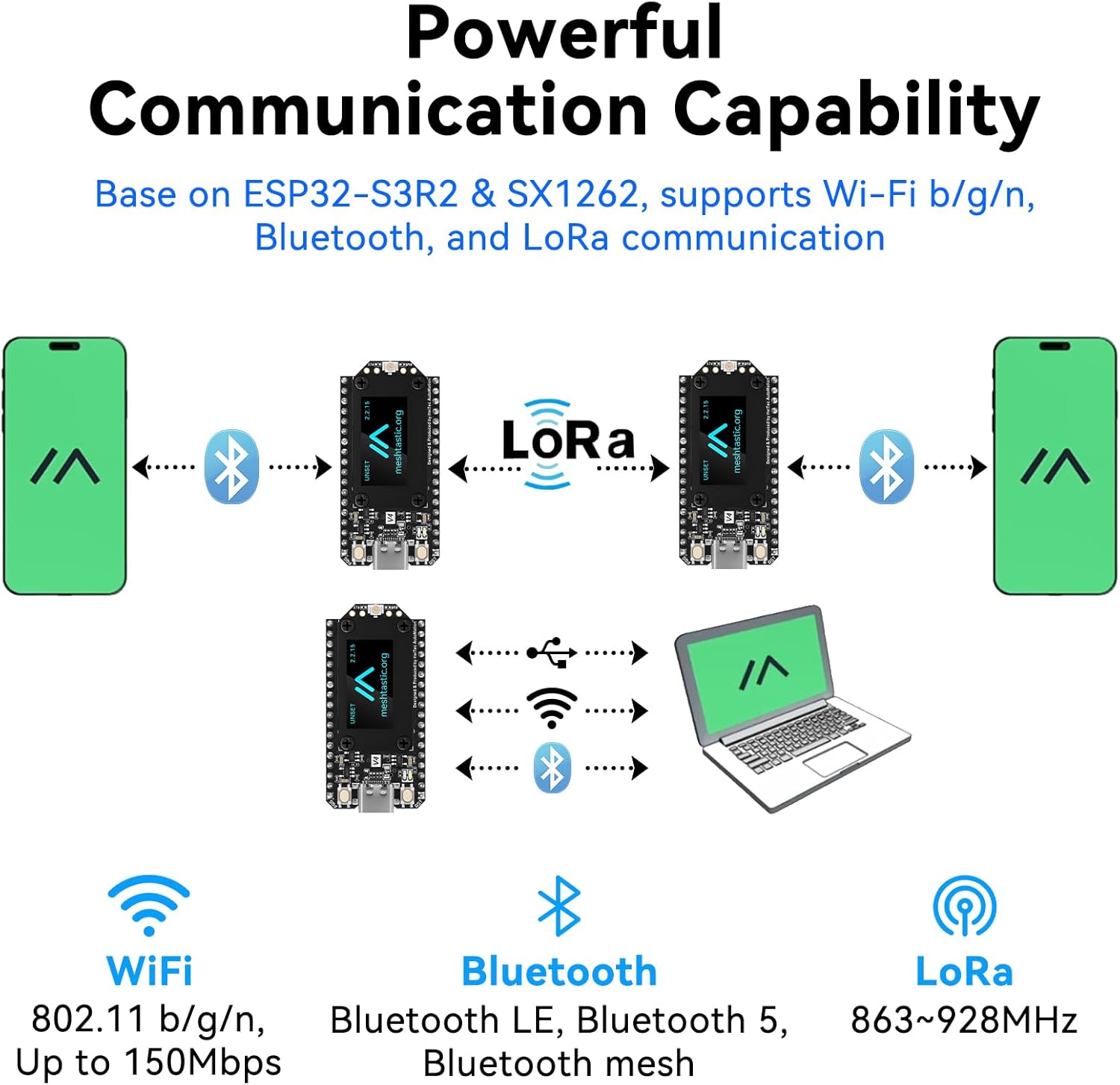

- Upgraded ESP32-S3 MCU: Heltec V4 features upgraded ESP32-S3R2(WiFi b/g/n, Blutooth) as master chip, with 2MB PSRAM & 16MB Flash, delivering superior processing for complex IoT applications and Meshtastic projects
- High Power 28dBm SX1262 LoRa: Heltec V4 experience exceptional wireless range with 28dBm transmission power and -137dBm sensitivity. Perfect for building reliable Meshtastic nodes, smart home IoT devices, and industrial applications. Provides greater communication distance across large urban environments, making it an ideal Meshtastic solution

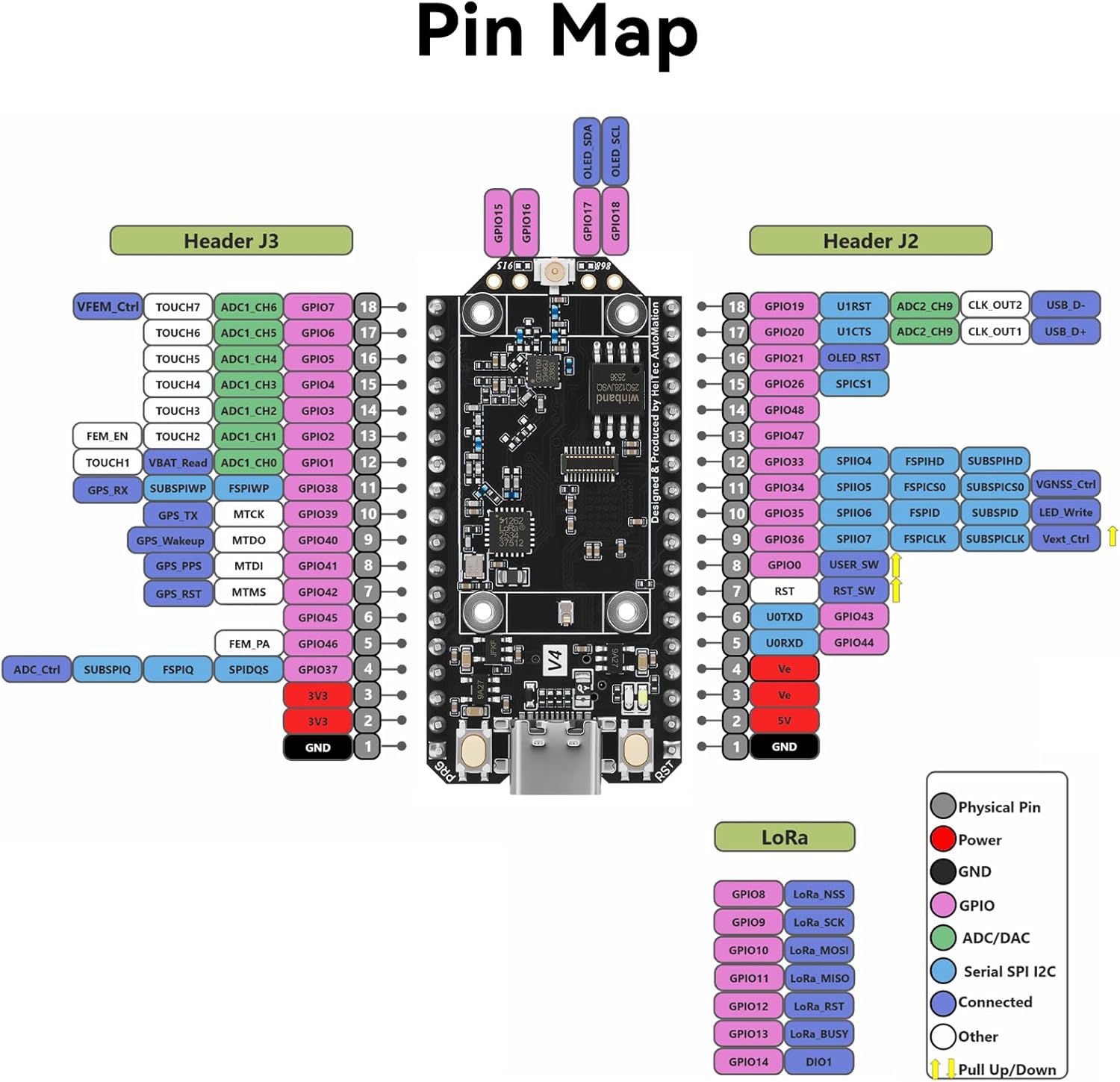

- Highly Extensible: Newly added SH1.25-8Pin GPS interface for positioning, allowing for independent control of GNSS interface power. Based on GPIO matrix and IOMUX functionality, most GPIO pins can be configured for I2C, SPI, I2S, PWM, or UART functions
- Power Management: Newly added SH1.25-2P solar interface, compatible with 4.4V-6V/540mA solar panel input; optimized lithium battery management system, supports charge and discharge management, overcharge protection, power detection and USB/battery power automatic switching, and adapts to solar charging function
- Widely Applicaiton: Suitable for various IoT applications such as smart cities, agricultural monitoring, smart homes, industrial control, security systems, and wireless meter reading, providing you with a more efficient and flexible development experience
| Brand | YELUFT |
|---|---|
| Model Name | HTIT-WB32LA V4-6 |
| Manufacturer | Heltec Automation Technology Co., Ltd. |
| Model Number | HTIT-WB32LA V4-6 |
| BuiltIn Media | 1 x Heltec V4 Development Board, 1 x LoRa Antenna, 2 x 1.25*2 Connector (for battery&solar), 2 x 2.54*2 Header Pin |
| Mfr Part Number | FG-5C0A-87R3 |
| Processor Brand | Espressif |
| Processor Count | 1 |
| Total Usb Ports | 1 |
| Operating System | Android, Mac OS, Windows, iOS |
| Warranty Description | 1 Year Warranty |
| Wireless Compability | 802.11bgn, Bluetooth |
| RAM Memory Technology | LPDDR4 |
| Connectivity Technology | Bluetooth, LoRa, USB, Wi-Fi |
