ICT Billet LS Gen III Billet Knock Sensor Relocation Brackets LS1 LM7 LR4 LQ4 LS6 L59 LQ9 LM4 L33 4.8 5.3 5.7 6.0

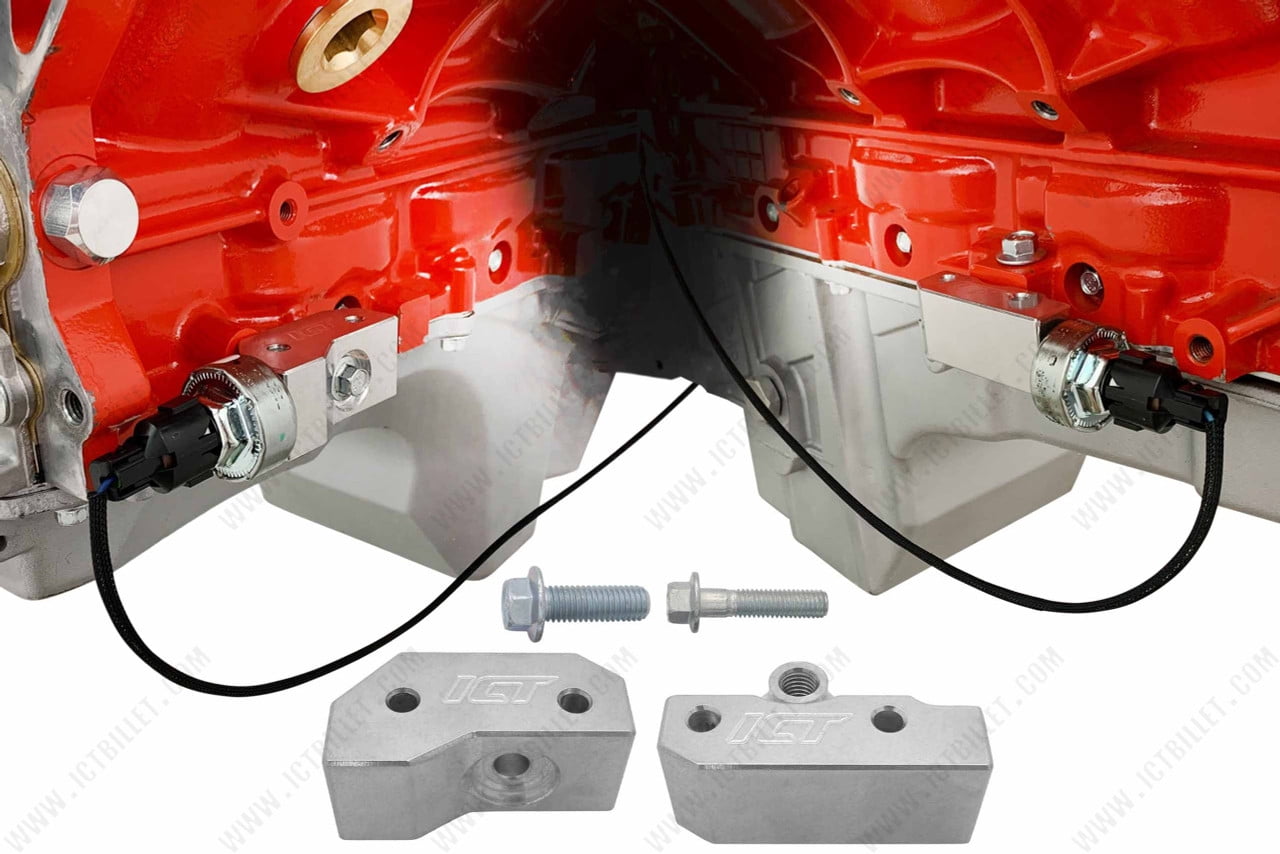

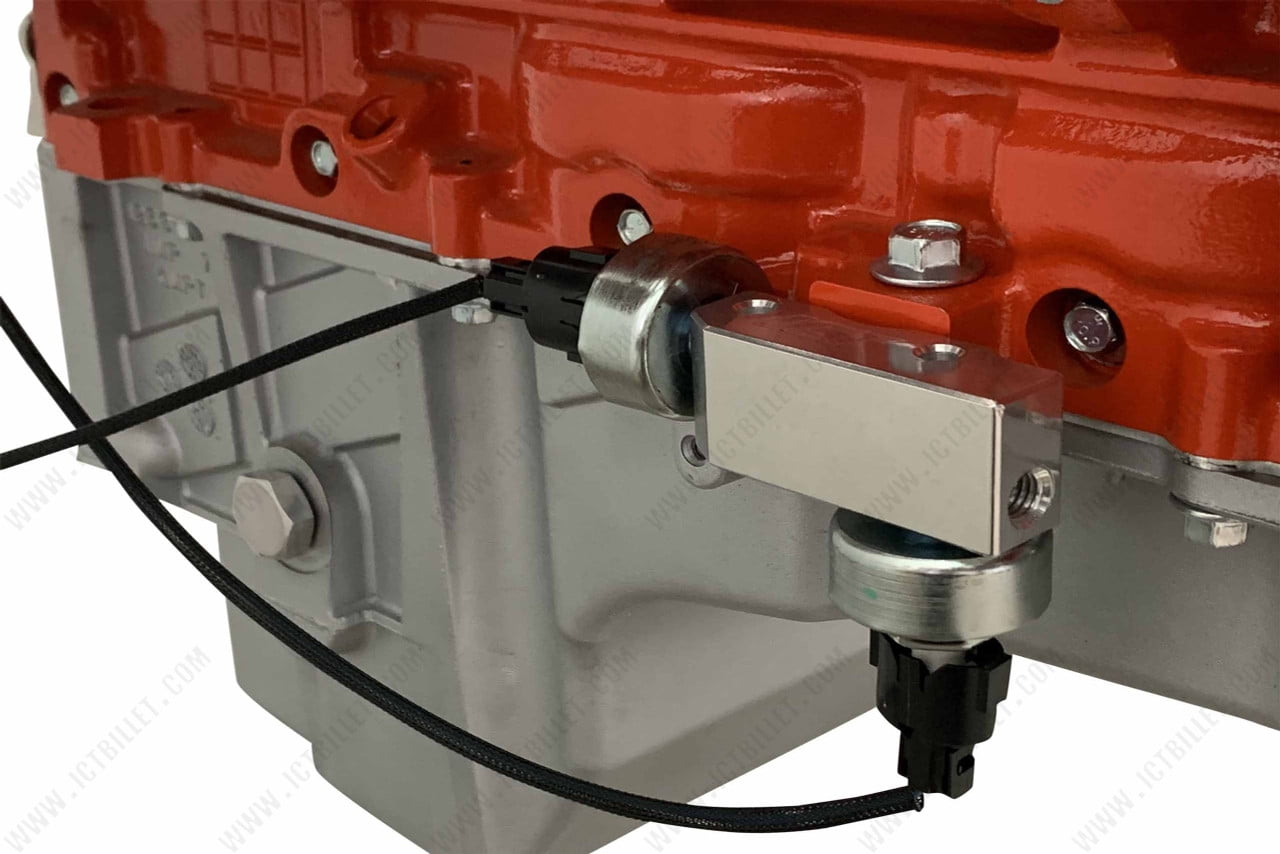

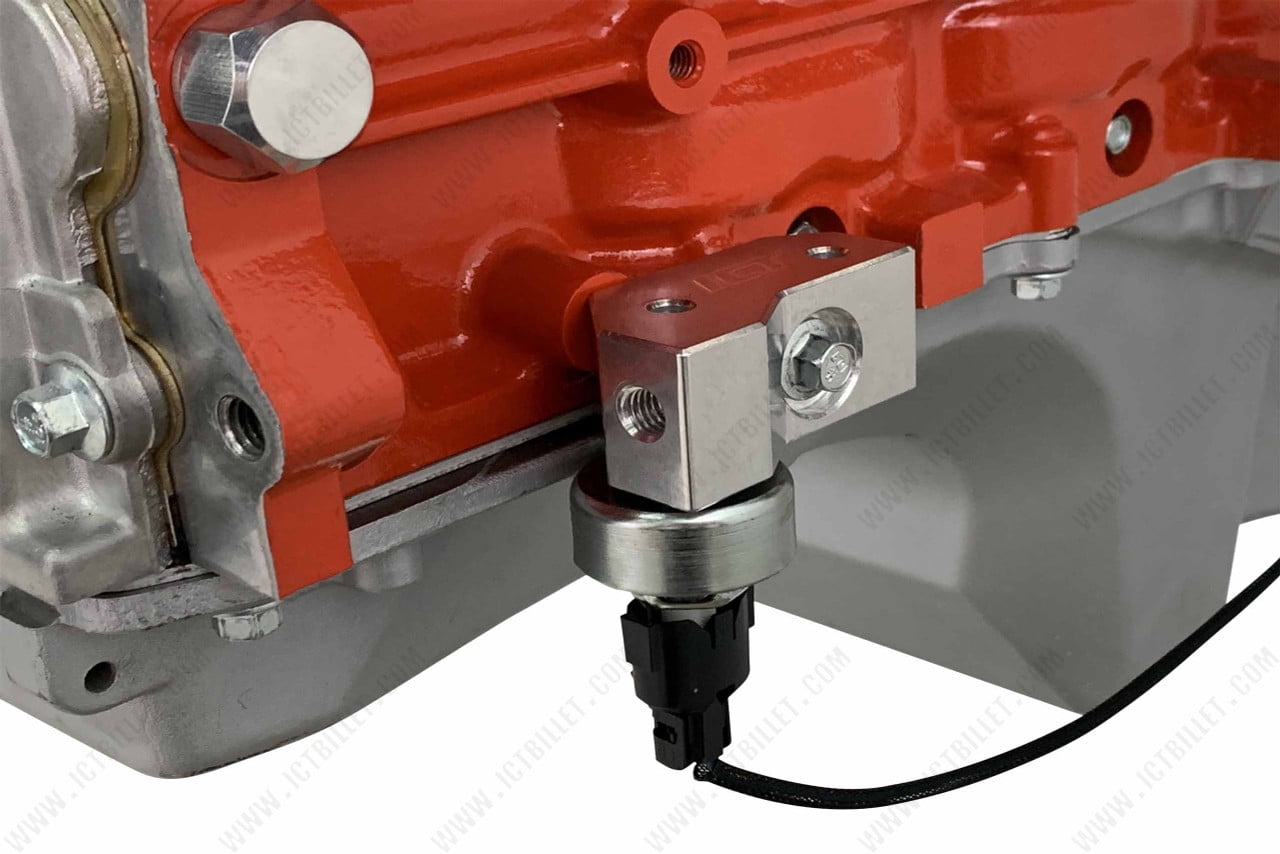

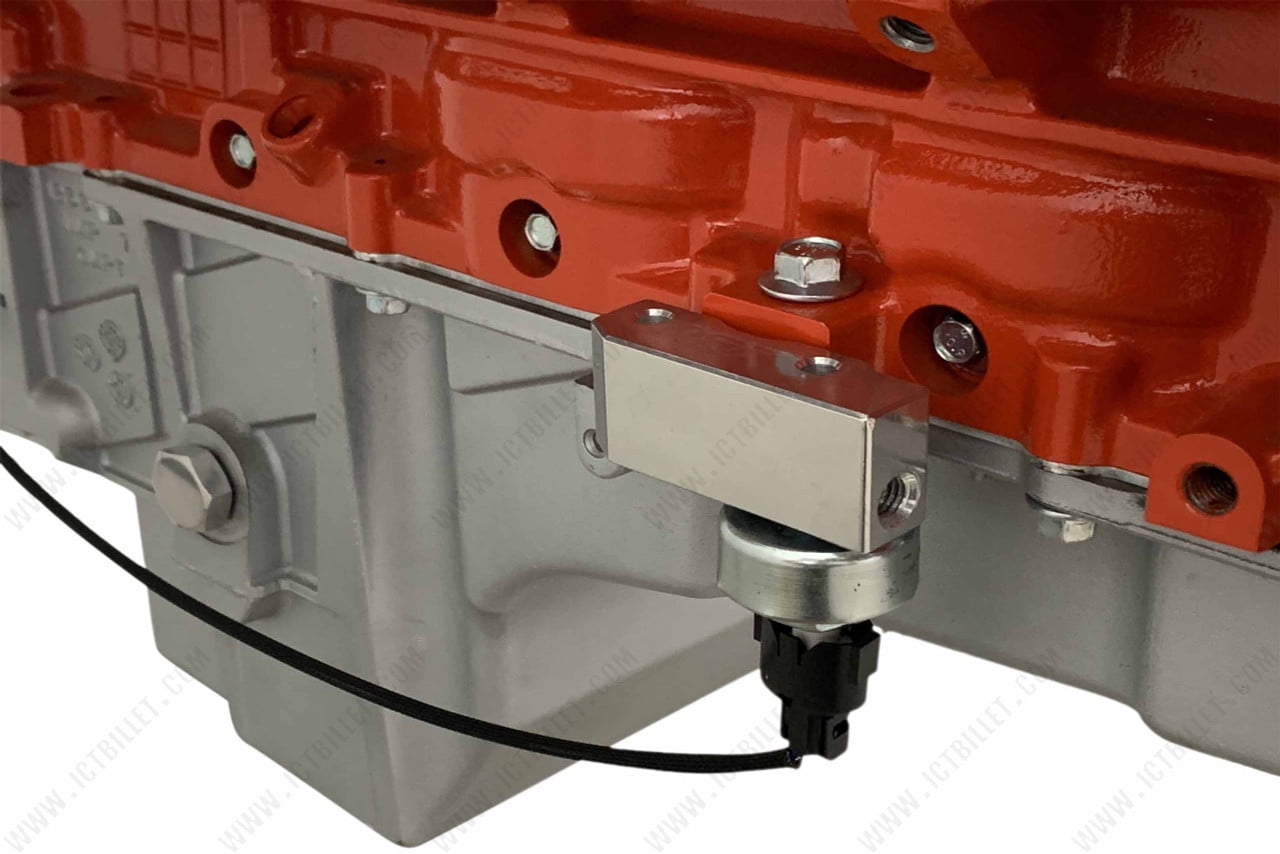

Gen-3 LS Knock Sensor Relocation Brackets ICT Billet 551216-KN30 Allows LS Gen III knock sensors to be retained and relocated from the valley pan area to the bottom edge of the engine block Required if wanting to keep your knock sensors while using an ICT Billet valley pan (ICT# 551629 or 551629G) Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum Compatible with: All gen III harnesses, gen III knock sensors Fits engine RPO codes: LS1 LM7 LR4 LQ4 LS6 L59 LQ9 LM4 L33 Includes: 2 billet aluminum knock sensor brackets, and mounting hardware Requires extending wire harness or using an ICT Billet knock sensor extension harness # WEKN030-36 Wire assignments: Driver side - bank 1 - dark blue wire Passenger side - bank 2 - light blue wire
