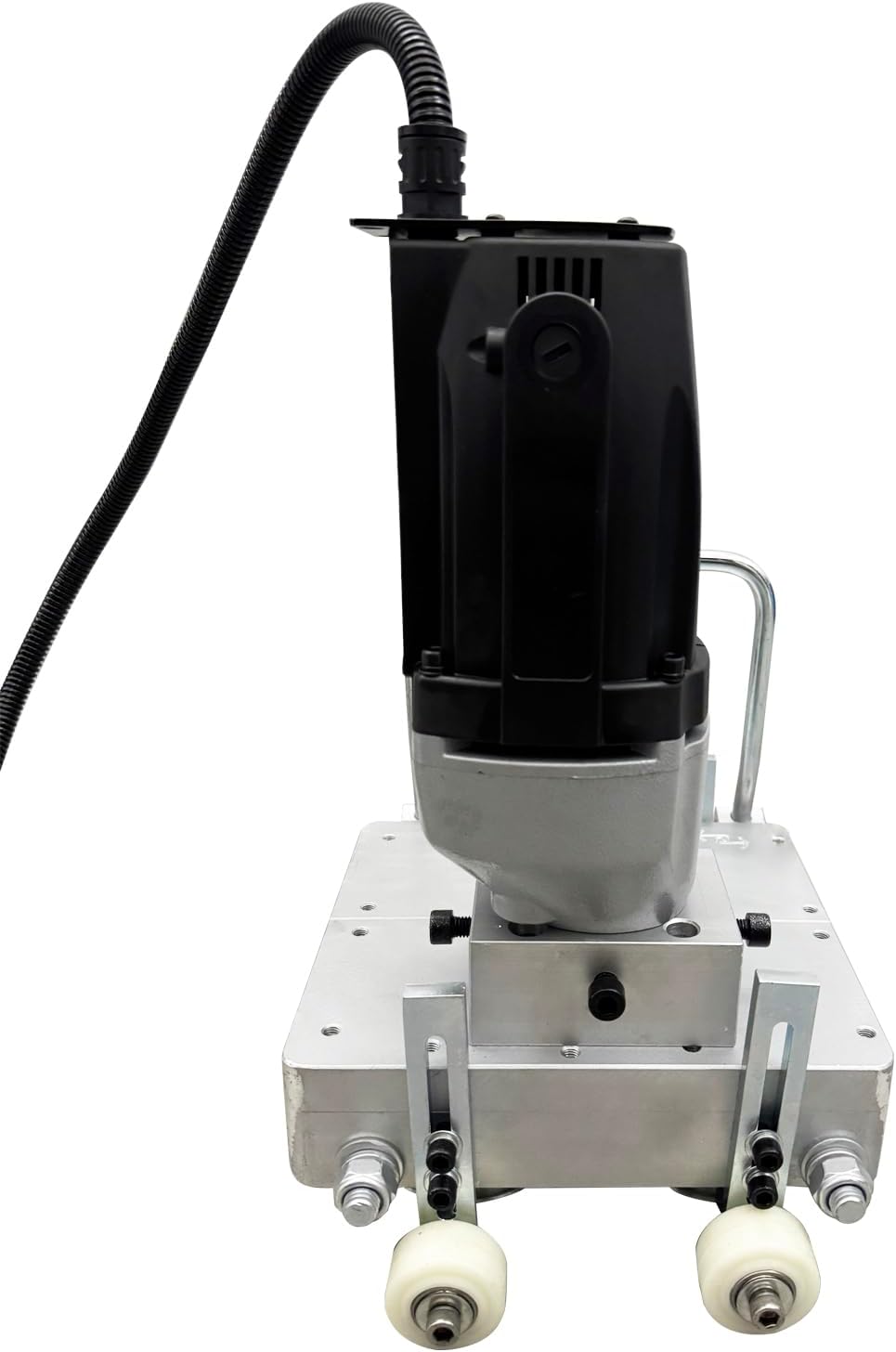

Portable Standing Seam Machine 15-20m/min, Single Direction 360° Seam Roof Panel Roll Forming Machine for Color Steel Tile Edge 430 panel model AC110V 2.4kW

Product Overview Standing seam metal roof machine is a kind of equipment used for color steel tile edge processing, which is mainly used to seam the edge of color steel tile to enhance its sealing and durability. Through the edge seaming treatment, it can effectively prevent rainwater penetration, extend the service life of color steel tiles and improve the overall quality of the building. Applicable to colored steel tile 430 type. The dual-wheel standing seam metal roof machine features specialized arc-locking capability, allowing precise curved edge processing for complex roofing designs. Product Specification Voltage: AC110V Phase number: 1 Power: 2.4kW Applicable panel model: 430 type Panel material: Colored steel tile Speed: 15-20m/min Direction: Single direction Panel thickness: ＜0.027"(0.7mm) Seaming effect: 360° seam roof panel, standing seam roof panel Number of rollers: 2 rollers Package size: 13.0"*11.4"*19.6" (33cm*29cm*50cm) Net weight / Gross weight: 33.5lbs(15.2kg) / 35.7lbs(16.2kg)

• This standing seam machine features a high-power 2400W design, easily seaming panels with a thickness of up to 0.7mm. With a hemming speed of 15-20m/min, it is compatible with 430-type color steel plates, making it an ideal choice for industrial applications such as construction and factory buildings.

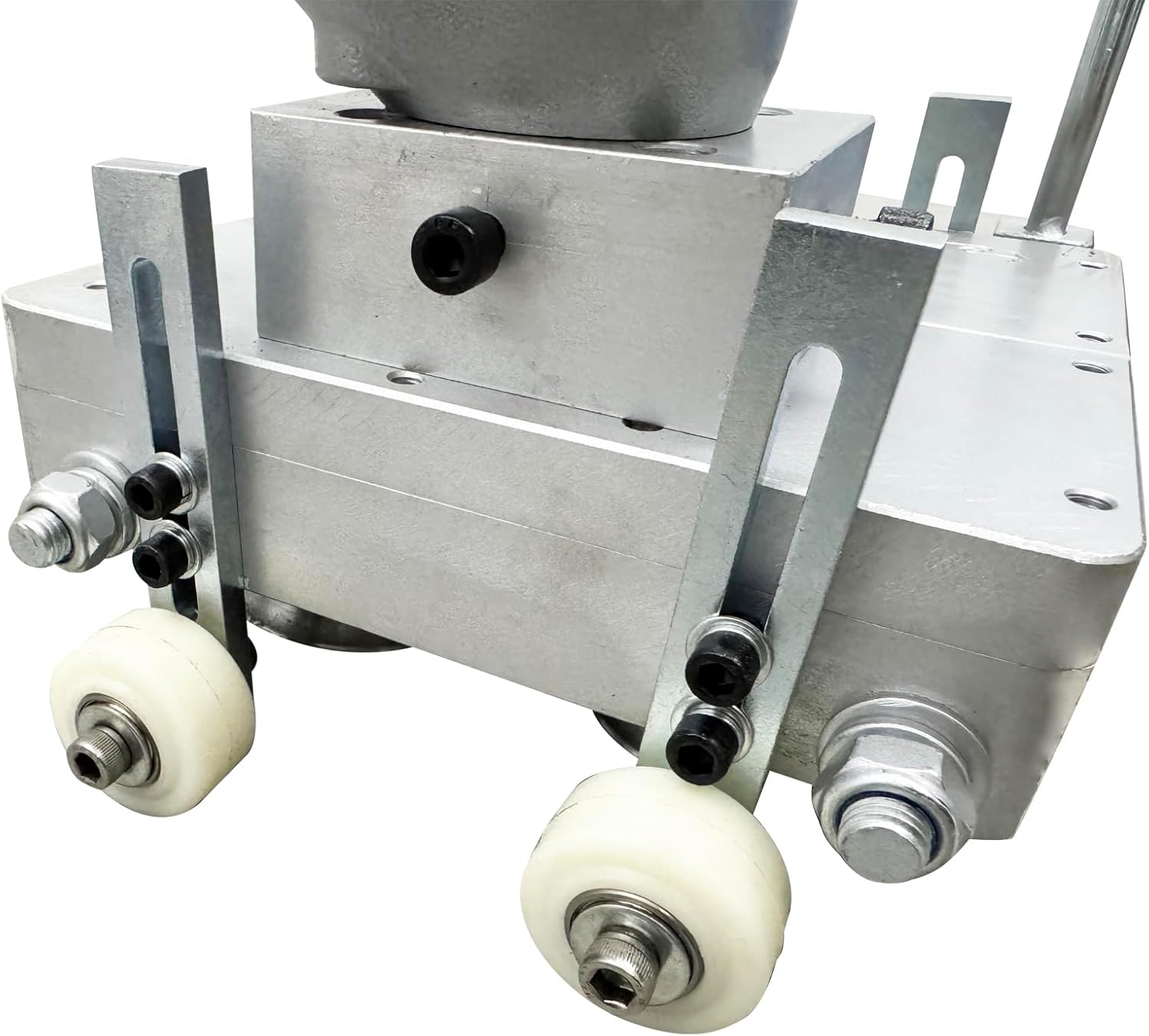

• Chrome-plated wheels are mainly used to improve hardness, enhance wear resistance, improve gloss and corrosion resistance, thus extending the service life of the equipment and improving the overall performance.
• The handle features a foldable design that allows manual operation to release machine jams when stuck. When folded, it reduces overall volume for easier transportation and storage.
• The all-aluminum body features lightweight construction, high corrosion resistance, and superior heat dissipation, significantly enhancing portability - making it ideal for rooftop and construction sites.
• This dual-wheel model significantly improves efficiency on arched roofs, curved structures, and other non-linear architectural elements. The entire unit weighs approximately 15kg and features a compact structural design, making it easy for a single person to carry to rooftops, construction sites, and other complex terrains.
